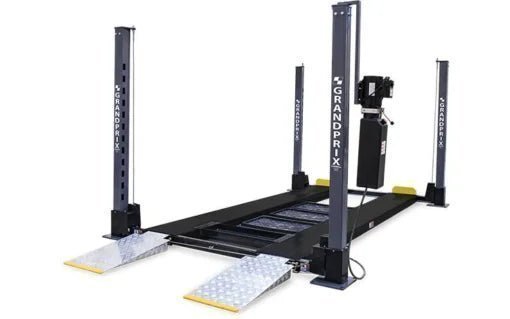

GP-9F Package (5175254) 9,000-lb. Capacity
$719.10
Guaranteed Safe Checkout
Description
- BendPak’s proven legacy gives you an edge in performance, service and cost of ownership.
- Designed to be fastened to the floor or free-standing.
- Comes standard with caster kit, drip trays, mobile jack tray, aluminum approach ramps, and hardened steel tire stops.
- Boxed-steel columns are made from structural 4.75″ x 4.75″ welded steel tubing.
- Columns feature 12″ x 12″ baseplates 5/8″ thick.
- Manual dead bolt locks are reliable and safe and are machined directly into the boxed-steel columns.
- 3/4″ thick steel safety locks are spring loaded for automatic and solid engagement.
- 13 positive locking positions are spaced every 4 inches.
- Secondary slack-cable lock system assures instant back-up safety lock engagement in the event of a cable failure.
- Exterior steel sleeves with UHMV slides surround each column to ensure positive contact and containment.
- ¾” thick safety locks are securely trapped by the full-perimeter cross tube sleeves and can’t become dislodged or disengaged.
- Welded-steel runways feature utility rail for jack tray and drip trays and other accessories.
- Runways are welded and boxed for extra strength.
- Built-in flow restriction integrated into the hydraulic cylinder to prevent free-fall.
- Oversize baseplates and pull-perimeter cross tube sleeves reduce lateral movement and sway when lift is free-standing.
- Low-profile runways are only 5″ high to accommodate low ride-height vehicles.
- Hardened steel safety lock linkages use 3/8″ molded carbon steel rod ends to reduce flex and twist to ensure positive locking and smooth operation.
- Precision, reinforced rod ends with spherical bearings are protective coated for corrosion resistance and are designed to provide low friction and high wear resistance.
- 5/8″ thick top caps.
- Sheave axles feature hardened steel collars and snap rings.
- Pull out tire stops on both ends of the lift that allows drive through capability.
- Stainless steel lifting cables are rated to handle over 14,000 lbs. each.
- Cable keepers assures cables remain safely secure to the sheaves.
- Pre-assembled cables simplifies installation.
- 36″ aluminum approach ramps are gusseted to eliminate flex and bending.
- Non-marring heavy-duty poly caster wheels will not damages painted floor surfaces.
- Durable powder coat finish.
- 3/4″ runway bolts provide positive attachment with increased safety factor.
- Operator controls are simple to use, well-placed and ergonomically advanced to reduce operator strain and fatigue and increase safety.
- Electric/hydraulic power system.
- Single hydraulic cylinder underneath runway.
- Optional full-length aluminum platforms can be added to easily store lawnmowers, ATVs, jet skis or motorcycles.
Capacity
Lifting Capacity*
9 000 lbs. (4 082 kg)
*Max Capacity / Front Axle
4 500 lbs. (2 041 kg)
*Max Capacity / Rear Axle
4 500 lbs. (2 041 kg)
Rise
A – Min. Runway Height:
5″ (127 mm)
B – Max. Rise:
70″ (1 778 mm)
C – Max. Lifting Height:
75″ (1 905 mm)
Time to Full Rise:
45 seconds
Outside Dimensions
D – Overall Width:
114,5″ (2 908 mm)
E – Outside Length:
176,5″ (4 483 mm)
F – Overall Length:
203″ (5 156 mm)
G – Height of Columns:
89″ (2 261 mm)
Inside Dimensions
H – Width Between Columns:
98″ (2 489 mm)
I – Drive-Thru Clearance:
86″ (2 184 mm)
Runways
J – Runway Width:
18,75″ (476 mm)
K – Length of Runways:
165,5″ (4 204 mm)
L – Width Between Runways:
37,5″ (953 mm)
M – Runway Centerline:
53,75″ (1 365 mm)
N – Outside Edge of Runways:
72,5″ (1 842 mm)
Minimum Wheelbase
Rated Capacity:
115″ (2 921 mm)
75% Capacity:
100″ (2 540 mm)
50% Capacity:
85″ (2 159 mm)
25% Capacity:
70″ (1 778 mm)
Locking
Locking Positions:
13
Lock Spacing:
Every 4″ (102 mm)
Power Unit
Motor:
STANDARD: 110VAC, 50-60HZ, 1PH, 20A or OPTIONAL: 208-230VAC, 50-60HZ, 1PH, 25A
Noise:
45 dB
Shipping
Weight:
2,224 lbs. (1008.8 kg)
Dimensions:
166″ x 22″ x 43″ (4,203 mm x 4,203 mm x 1,092 mm)
